Copperhead® Silicone Boot Installation Instructions

Copperhead® Silicone Boot Installation Instructions

Copperhead® Silicone Boot Installation Instructions

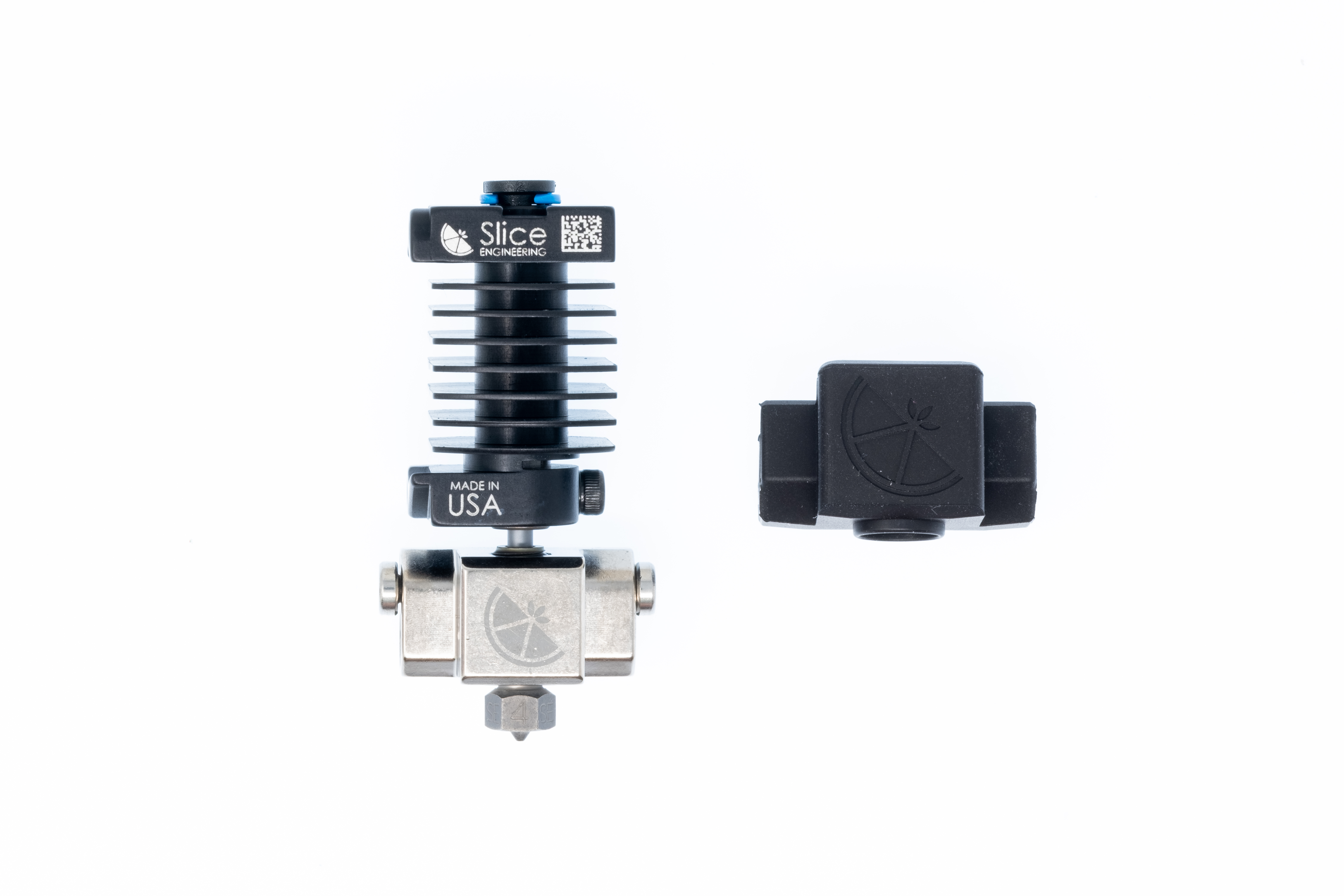

What You Need

  1. Copperhead® Silicone Boot
  2. Copperhead® Hot Block
  3. Copperhead® Heat Break
  4. Nozzle

Before Starting

  1. Remove any filament residue on the Copperhead® Hot Block.
  2. Attach the nozzle to the Copperhead® Hot Block per the Copperhead® Installation Instructions.

Installation

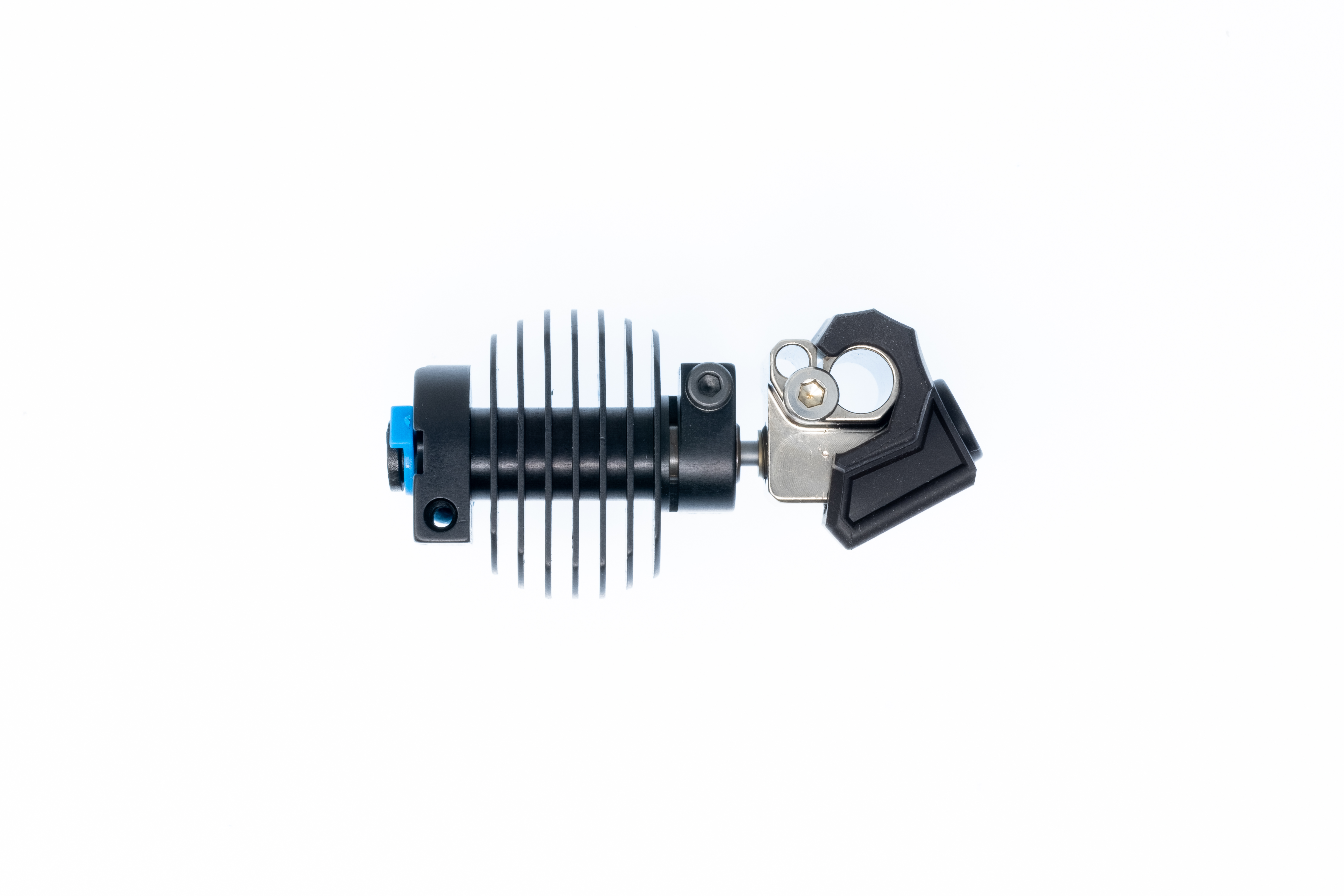

Step 1: Starting from the back of the Copperhead® Hot Block, slide the Copperhead® Silicone Boot onto the Copperhead® Hot Block.

Step 2: Push the Copperhead® Silicone Boot the rest of the way onto the Copperhead® Hot Block.

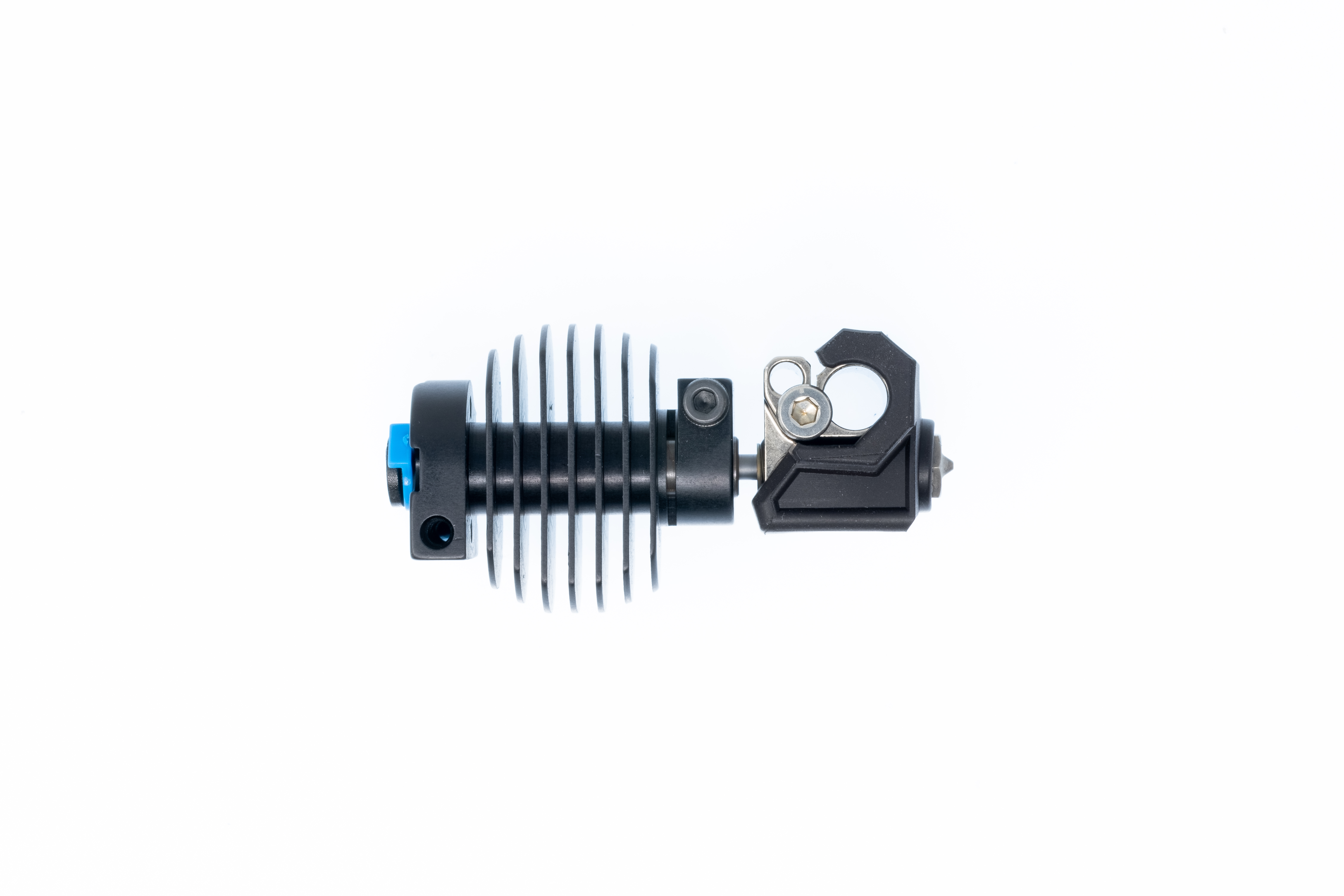

Step 3: Make sure the upper flanges on the Copperhead® Silicone Boot are completely on top of the Copperhead® Hot Block, as shown.
